Cg125 125cc Motorcycle and Tricycle Engines for Three Wheels
Type:Single cylinder,four-stroke,air-cooled
Displacement:ml124
Bore x Stroke:mm56.5 x 49.5

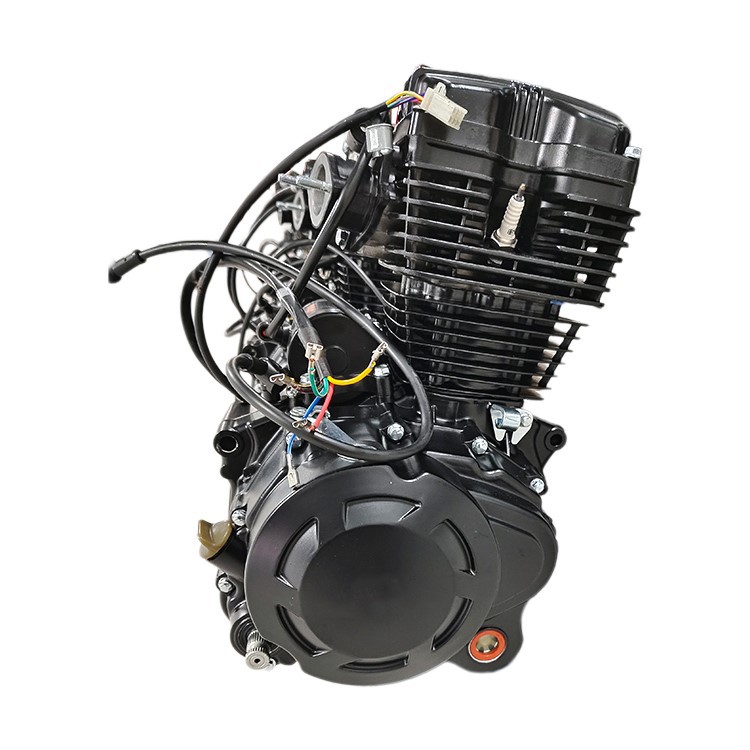

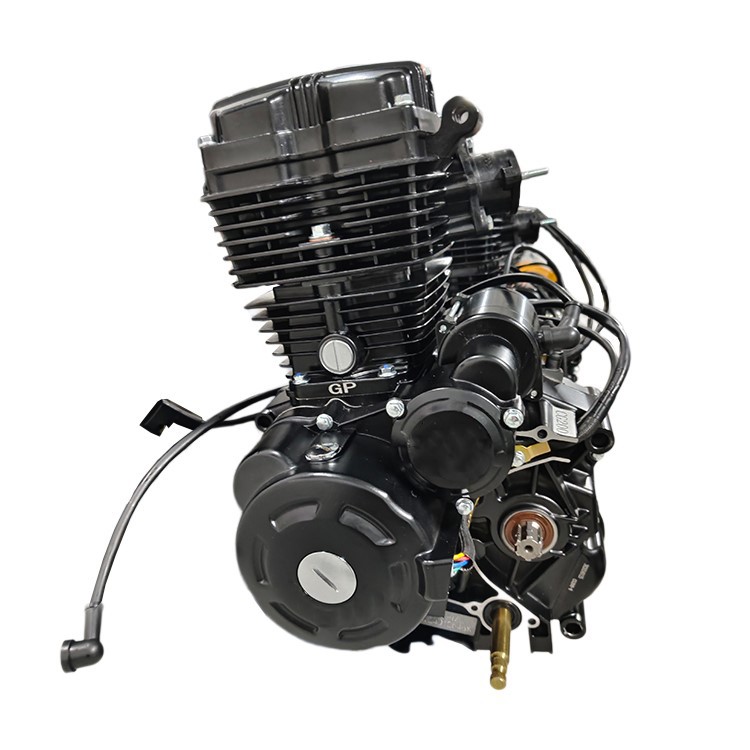

CG125 125CC Air-Cooled 4-Stroke Engine – For Motorcycles, Tricycles & Suzuki Models
CG125 125CC Motorcycle Engine adopts the basic structure of single-cylinder air cooling and push rod valve distribution. It has the characteristics of stable power, low torque, durability and easy maintenance. It is used in scenarios such as tricycle cargo transportation, providing reliable power for vehicles and meeting the needs of urban and rural short-distance logistics and daily operations.
157FMI(CG125)
|
Main Technical Specifications |
|
Model:--------------------------------------- 157FMI |
|
Type:-------- Single cylinder,four-stroke,air-cooled |
|
Displacement:ml--------------------------------- 124 |
|
Bore x Stroke:mm ----------------------- 56.5 x 49.5 |
|
Rated Power & Rotating Speed:KW/(r/min)---- 7.2/8500 |
|
Max.Torque & Rotating Speed:N.m/(r/min)---- 8.8/7500 |
|
ldling Speed:r/min ----------------------- 1500±150 |
|
Min.Fuel Consumption:g/KW.h ----------------- ≤ 367 |
|
lgnition: -------------------------------------- CDI |
|
Starter: ----------------------------- Electric/Kick |
|
Lubrication: ----------------------- Pressure/Splash |
|
Transmission: ------------------------ 5speed.Rotary |
Product Advantages
Heavy-load Resistance
CG125 125CC Motorcycle Engine adopts high-density aluminum alloy cylinder block + thick-walled steel bracket, with an overall structural strength of 230MPa, which can withstand the daily use load of a three-wheeled vehicle with a total cargo weight of more than 400kg for a long time without deformation or cracks.
Long Life
125CC ENGINE for three wheel is equipped with hard chrome-treated piston rings + 40Cr precision forged crankshaft, which can resist long-term friction and wear under high temperature and high pressure. It can be used for more than 5 years or 30,000 kilometers under normal working conditions, which is much better than the life of similar ordinary 125cc engines (about 2-3 years).
High Heat Dissipation Efficiency
CG125 125CC Tricycle Engine adopts a wide-pitch multi-layer fin structure, combined with a high-speed air cooling channel design, and the heat dissipation area is increased by 18%. Even in high-temperature urban environments or long-term climbing and loading, the engine can be kept from high-temperature flameout or power reduction.
Waterproof
The ignition system and electric starter adopt double-layer sealant packaging + plug waterproof cover design, and are matched with precision machined joint surface + high temperature resistant rubber sealing ring to ensure that the engine runs stably even in continuous wading or rainy environment without stalling or short circuit.
Fitment
Purpose: Replacement/Repair
Condition: Brand New
Minimum Order Quantity: 50 Sets
Origin: Chongqing, China
Type: Motorcycle Engine/Tricycle Engine/All Terrain Vehicle Engine
Color: Silver, Black, Gold
Quantity: 100% Tested Before Delivery
Supply Capacity: 800 Sets/Day

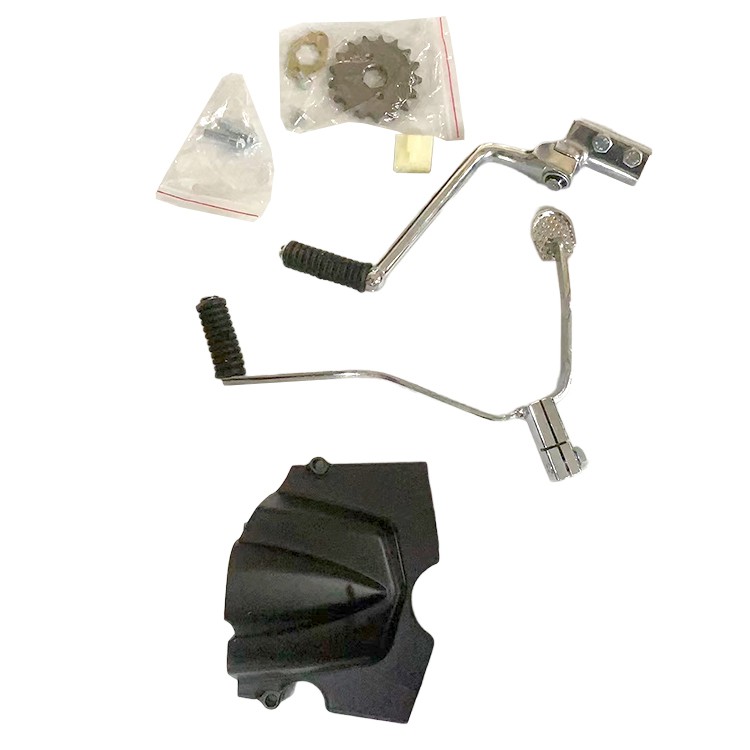

Package Included
1x ENGINE
1x Kick Starter Lever
1x Gear Shift Lever
1x Intake Manifold
2x Intake Gaskets
1X Tailcover
Specifications
125cc engine for suzuki can be supplied to many countries: Japan, Germany, Russia, Algeria, Poland, Nigeria
