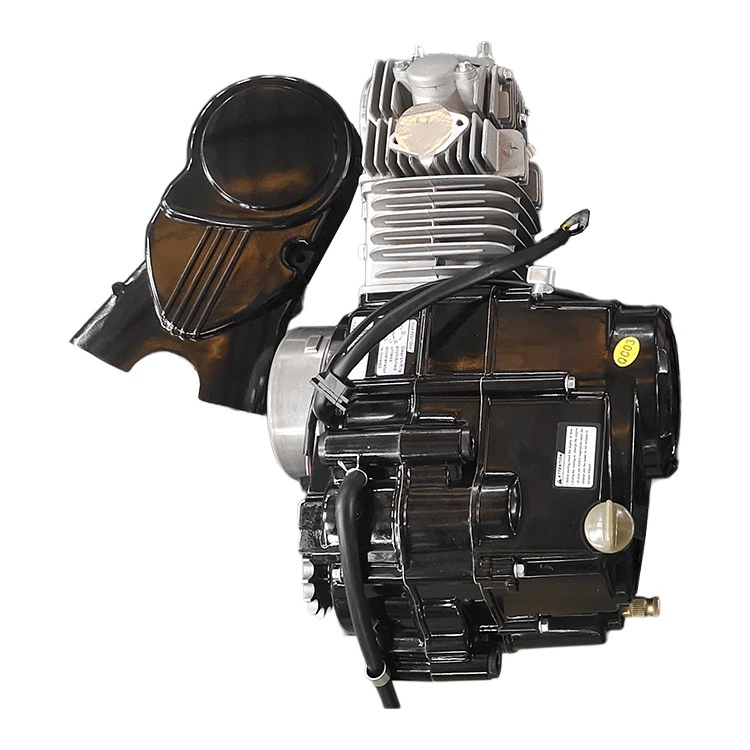

50cc 110cc 125cc Monkey Bike Motorcycle Engine 152fmh 154fmi

50CC 110CC 125CC Monkey Bike Motorcycle Engine 152FMH 154FMI
_20231222110141

50cc 110cc 125cc Monkey Bike Motorcycle Engine 152fmh 154fmi

Model:1P54FMI-K
Shift Model: 1 0 2 3 4
Type: Single cylinder, 4-stroke with air-cooled, and clutch operated by handBore×Stroke: 54×54 mm
Displacement: 119.7 ml
Compression Ratio: 8.7:1

Send Inquiry

Product Introduction

50CC, 110CC & 125CC Air-Cooled 4-Stroke Engines

50cc engine parts, 110cc engine with reverse and 125cc motor for taotao are designed for motorcycles, mopeds and multi-purpose bicycles, providing reliable and efficient power.

Specifications

Model: 1P54FMI-K

Shift mode: 1 0 2 3 4

Type: single cylinder, four-stroke, air-cooled, manual clutch; bore × stroke: 54 × 54 mm

Displacement: 119.7 ml

Compression ratio: 8.7:1

Maximum power: 6.5 kW/7500r/min±375r/min

Rated power: 5.6 kW/7500r/min±375r/min

Maximum torque: 8.0 Nm/5000r/min±250r/min

Idle speed: 1500r/min±100r/min

Minimum fuel consumption: ≤367g/kw.h

Ignition system: CDI

Starting method: foot start

Spark plug: A7TC

Clutch: wet multi-plate

Gearbox: 4-speed, manual clutch, 4 liters

Carburetor model: PZ16J

Main reduction ratio: 3.722

Gear ratio: 2.833/1.706/1.238/0.958

Lubricating oil capacity: 900 ml

Lubricating oil: SAE15W/40-SE, four-stroke gasoline engine oil

Engine size: 470×275×280 mm

Product Advantages

Durable
Whether it is 50cc engine parts, 110cc engine with reverse, or 125cc motor for Taotao, they all adopt an integrated high-strength aluminum alloy cylinder block and forged crankshaft structure, which is heat-resistant and wear-resistant, with a service life of more than 5 years, suitable for the high-frequency riding market.

Waterproof
The cylinder joint surface adopts a double-pass sealing structure, the ignition system adopts a CDI module and is sealed to prevent rainwater from seeping in, and the electrical connector adopts a glue-sealed connection to ensure that the engine can still run stably in rainy or humid environments.

High-precision Assembly
The 50cc engine parts and 125cc motor for Taotao use CNC precision-machined crankshafts, and the dynamic balance is controlled within ±1.0g. With a wet clutch and a four-speed transmission system, the vibration at idle is significantly lower than that of products of the same level, making driving smoother and the noise controlled within 62 decibels.

Fitment

For HONDA CRF50 / CRF70 / XR50 / XR70 / Z50 / Z50R / CT70 Mini Trail / Z50 / Minitrail Monkey / XL70 ST70 / QA50 / QR50 / CL70 / SL70 / 70 Passport / ST 90K2 / ST 90K1 / CS 90 / SL 90 / ZB 50
