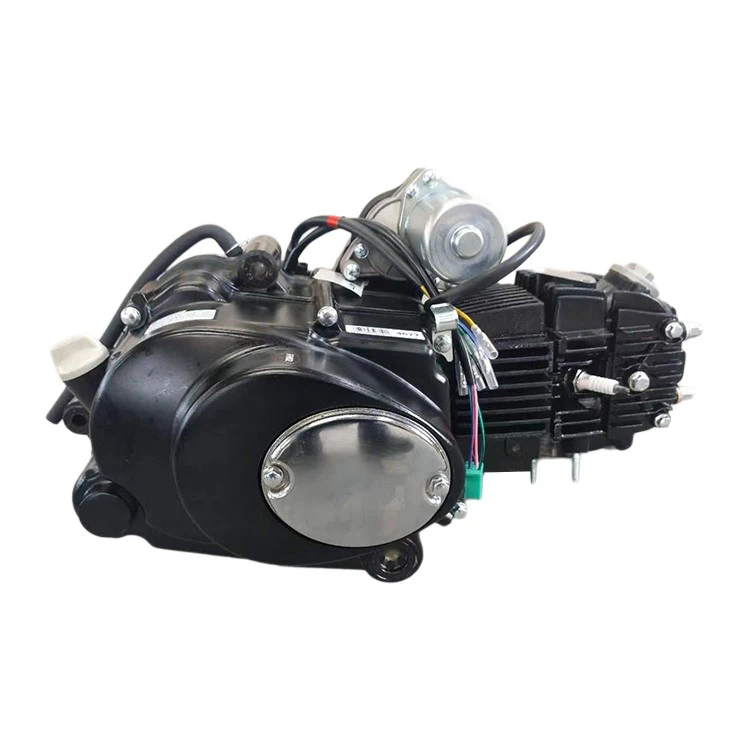

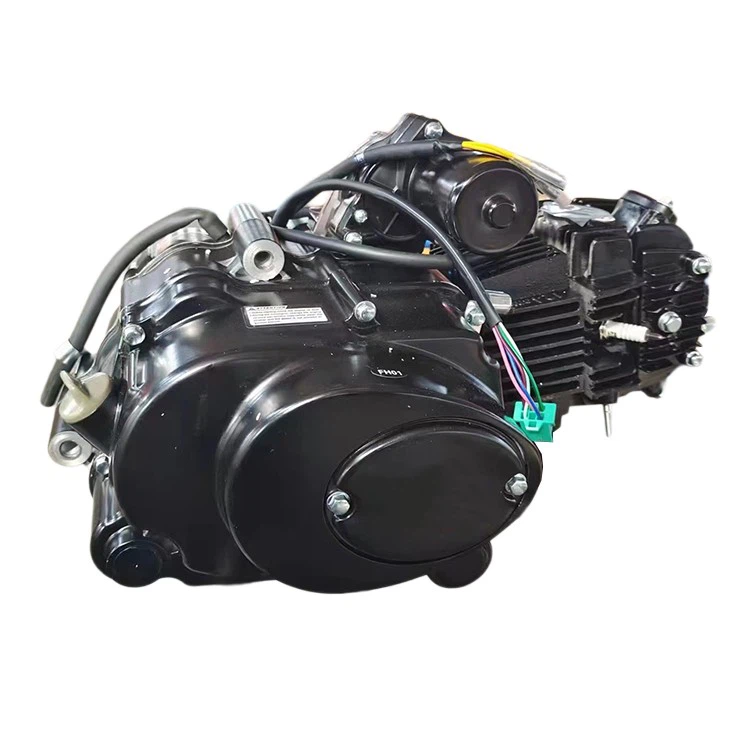

152fmh 110cc Engine with Fully Automatic
Type: Single cylinder,four-stroke,air-cooled
Displacement: 107 ml
Bore x Stroke: 52.4 mm x 49.5 mm
Premium 110CC Engines for Youth ATVs, Quad Bikes & Utility Vehicles
The 110cc quad bike engine is a four-stroke air-cooled power system designed for children's cars, beach cars and mini all-terrain vehicles. It has the characteristics of fully automatic clutch, compact structure and high torque output. It is suitable for off-road entertainment and leisure applications for young users.
152FMH(110)
|
Main Technical Specifications |
|
|
Model: |
152FMH |
|
Type: |
Single cylinder,four-stroke,air-cooled |
|
Displacement: |
107 ml |
|
Bore x Stroke: |
52.4 mm x 49.5 mm |
|
Rated Power & Rotating Speed: |
4.7/8000 KW/(r/min) |
|
Max.Torque & Rotating Speed: |
6.9/5500 N.m/(r/min) |
|
ldling Speed: |
1500±150 r/min |
|
Min.Fuel Consumption: |
≤ 367 g/KW.h |
|
lgnition: |
CDI |
|
Starter: |
Electric/Kick |
|
Lubrication: |
Pressure/Splash |
|
Transmission: |
4speed ,Rotary |
Fitment
Purpose: Replacement/Repair
Condition: Brand New
Minimum Order Quantity: 50 Sets
Origin: Chongqing, China
Type: Motorcycle Engine/Tricycle Engine/All Terrain Vehicle Engine
Color: Silver, Black, Gold
Quantity: 100% Tested Before Delivery
Supply Capacity: 800 Sets/Day
Product Advantages
High Torque Output
The 110cc engine for qiye provides a maximum torque of 8.0N·m/5500rpm, which can achieve stable propulsion even in sand, mud or uphill sections, and is suitable for ATV use environments with strong off-road requirements.
Durable
The cylinder body of the 110cc atv engine with reverse gear is cast with ADC12 high-strength aluminum alloy, with a strength of up to 265MPa, excellent thermal fatigue resistance, and a service life of more than 5 years.
Waterproof
The engine connection adopts a double-layer O-ring + sealant coating structure to prevent oil sludge and rainwater from penetrating, suitable for use in mud, puddles and other water-rich environments.
Customization
Logo And Brand Recognition
According to the brand visual recognition system, the exclusive logo can be customized on the prominent position of the 110cc atv engine with reverse gear housing through laser engraving, screen printing and other processes.
Transmission System Adaptation
The interfaces and components of different transmission methods, such as chain drive, belt drive or shaft drive, can be customized to meet the transmission structure requirements of specific equipment.
FAQ
Q: How do we guarantee quality?
A: Final inspection is always carried out before shipment;
Q: What can you buy from us?
A: Engines and spare parts
Q: Why should you buy from us instead of other suppliers?
A: Our factory specializes in engine production and has certifications including CE. We also sell a wide range of spare parts and accessories.
Q: What services can we provide?
A: Accepted delivery terms: FOB, CFR, CIF;
Accepted payment currencies: USD, EUR, RMB;
Accepted payment methods: T/T, L/C;
Languages used: English, Chinese
